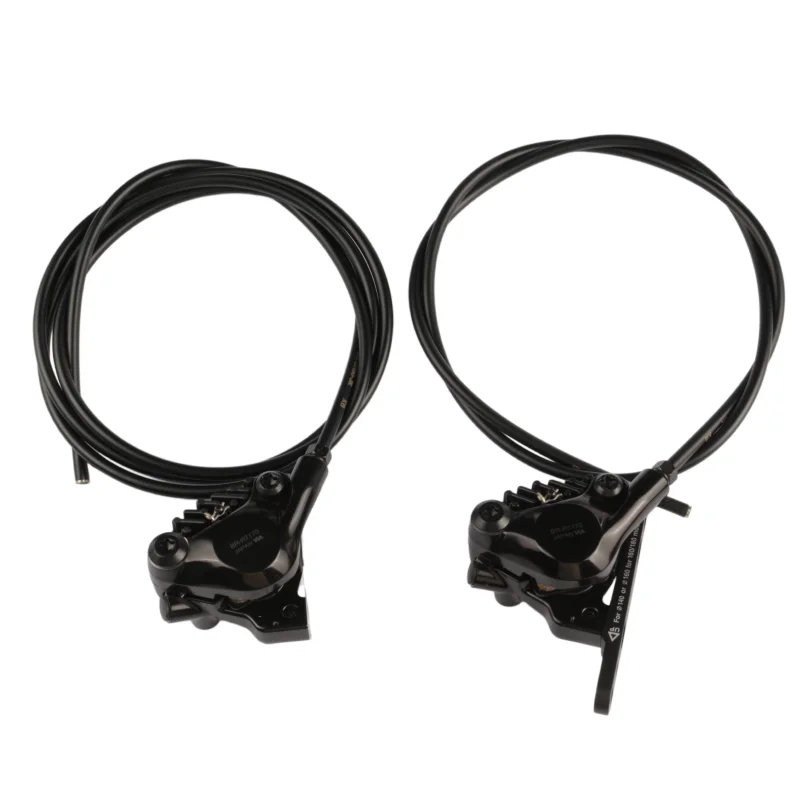

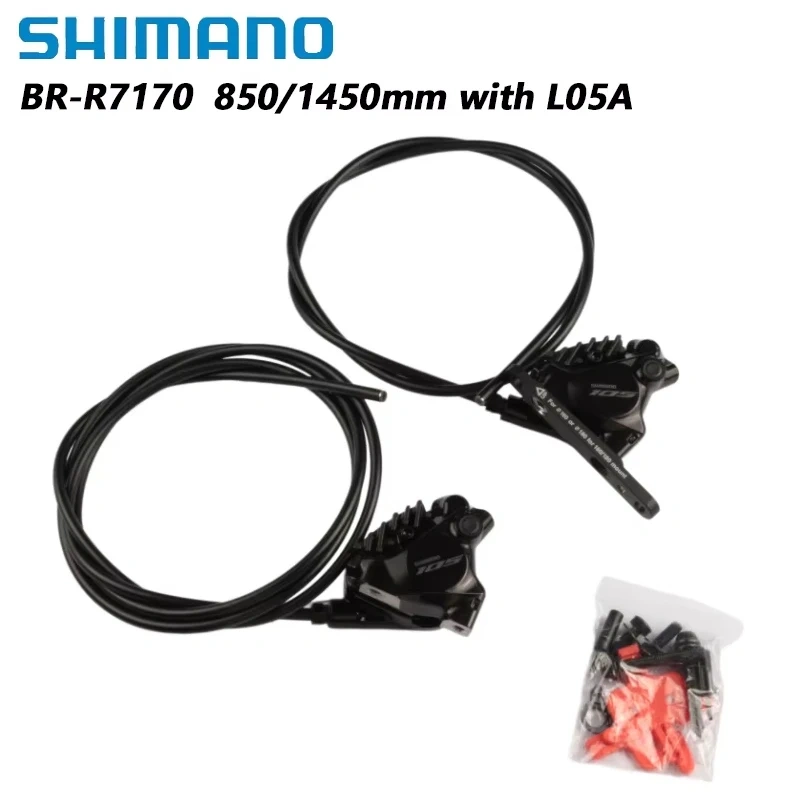

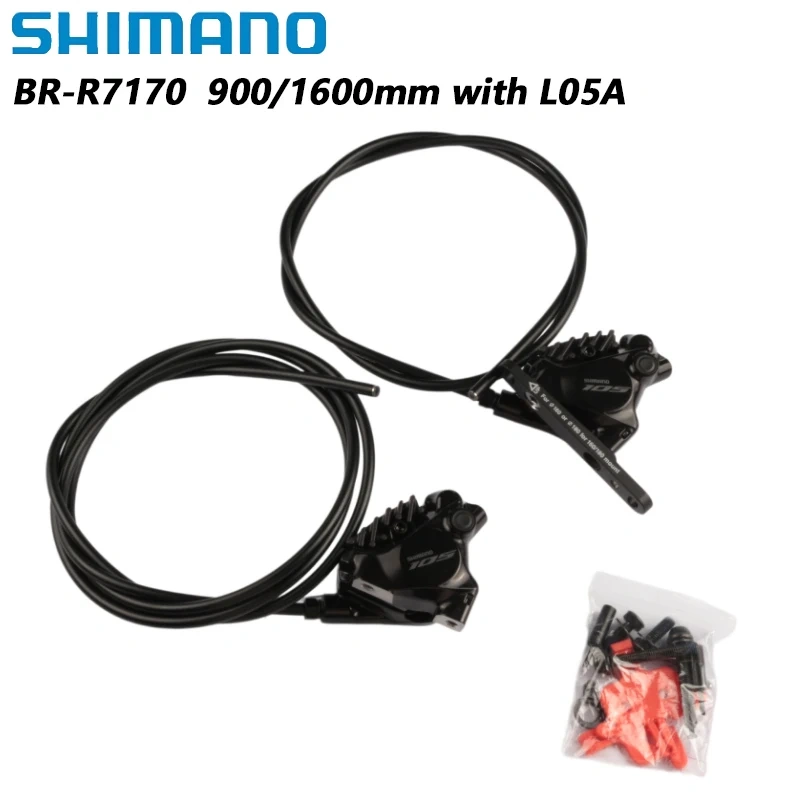

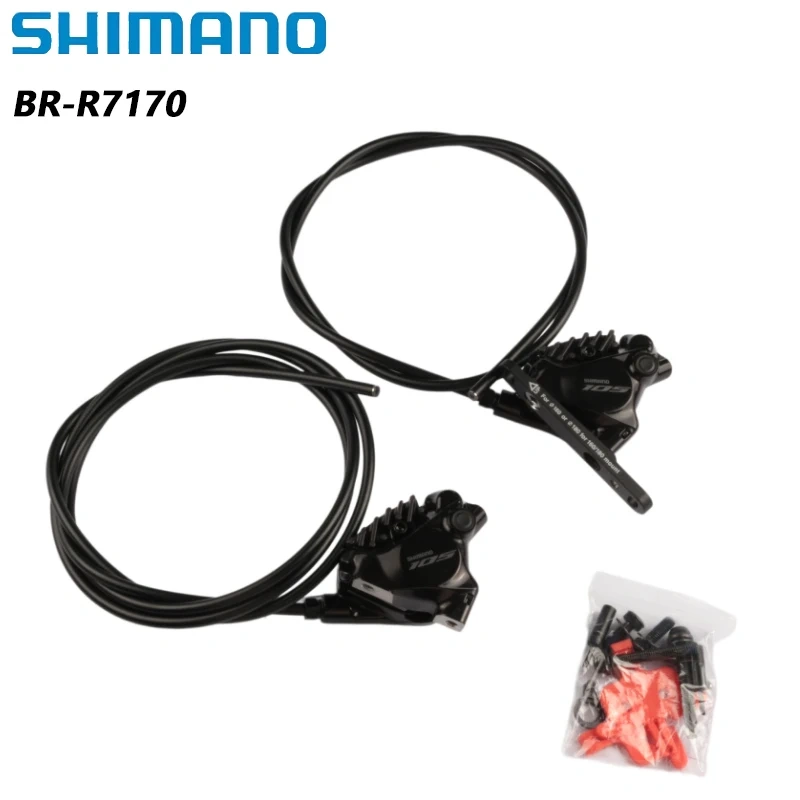

SHIMANO 105 BR-R7170 Hydraulic Disc Brake Front Rear 850/1450mm 900/1600mm with L05A For Road Bike parts Original

SHIMANO 105 BR-R7170 Hydraulic Disc Brake Front Rear 850/1450mm 900/1600mm with L05A For Road Bike parts Original

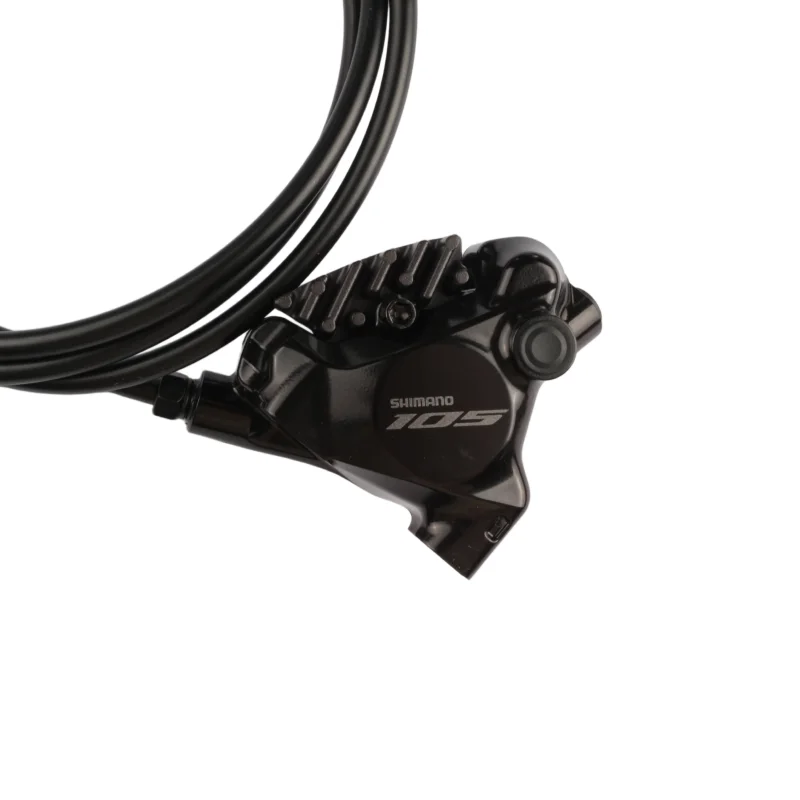

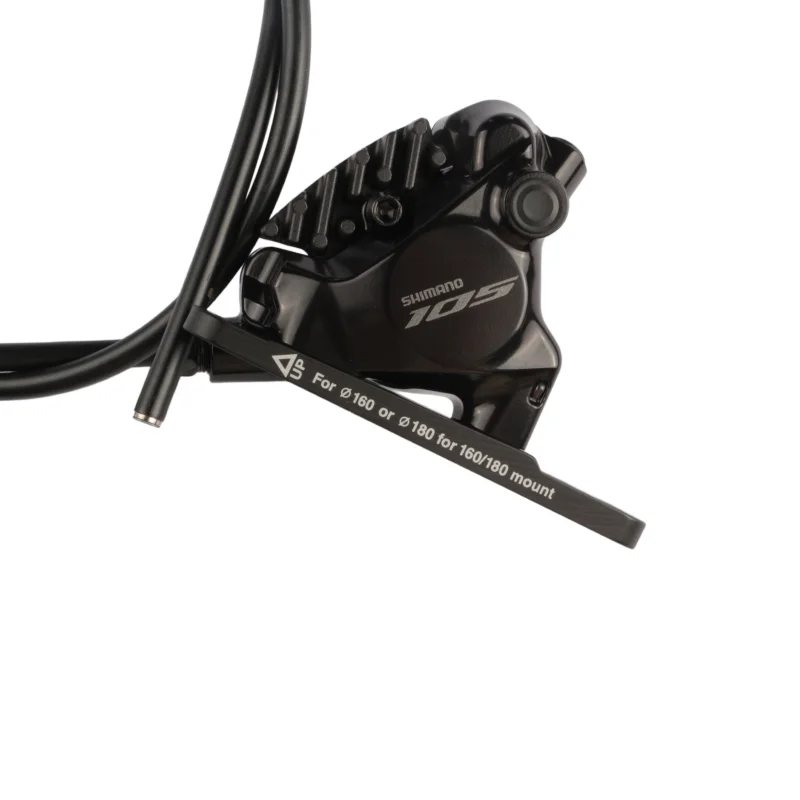

The new SHIMANO 105 clamps feature proven oil-pressure braking technology and the SHIMANO flat mounting system, making them especially suitable for road vehicles due to their narrow contour design. The R7170 is more compact and lighter than previous products, with a wide brake clamp gap for easy removal of wheels and less noise, and a one-way oil drain design for easy cleaning and maintenance.
Product Specifications

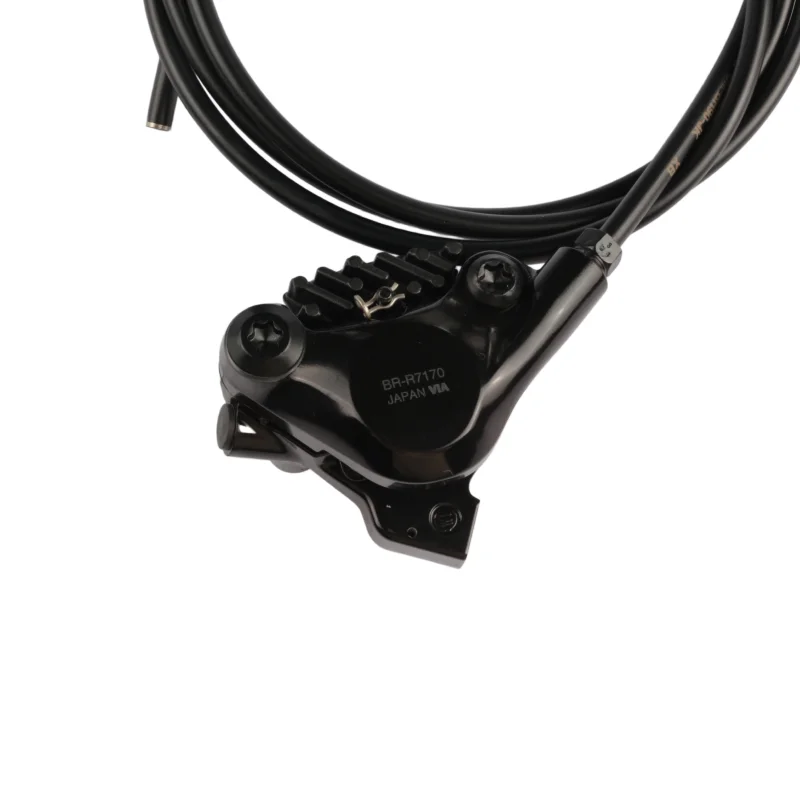

Model No.: BR-R7170
Series: SHIMANO 105
Brake Type: Oil Disc Brake
Brake oil pipe (set): SM-BH90-J-SSR SM-BH90-JK-SSR
Oil pipe interface: direct plug
Brake oil pipe color (set): Black
J-Kit Specifications (for OEM): ✔
Clamps compatible with ICE-TECHNOLOGIES clamps: ✔
Brake clamp: L05A-RF resin (with heat sink)
Recommended brake handle: ST-R7170
Recommended disc brake discs: SM-RT70, SM-RT64
Oil: Shimano Mineral Oil
One way bleeding: ✔

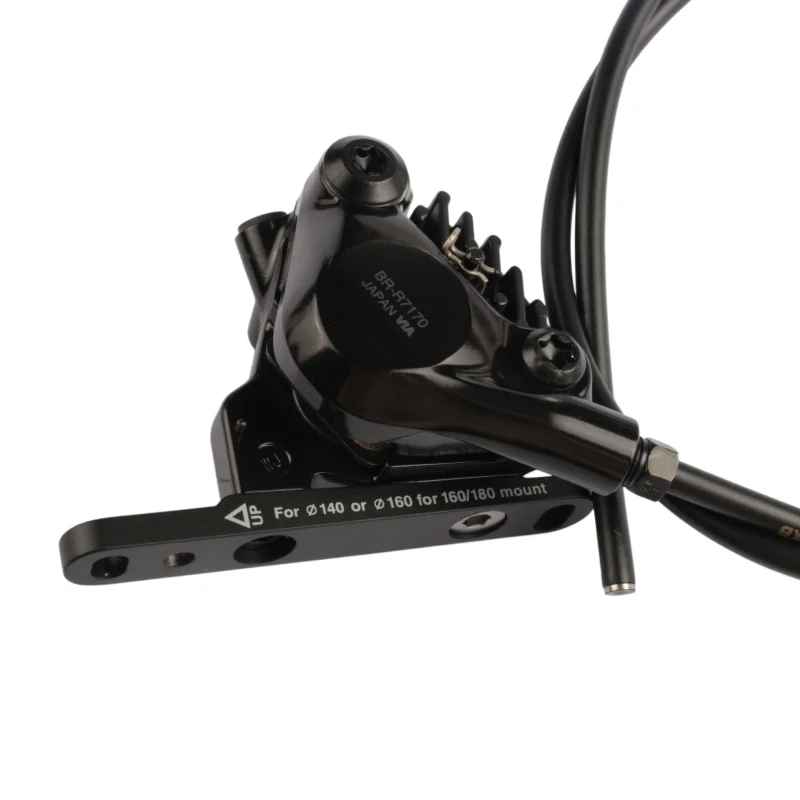

Bracket Type: Flat Installation
Piston: 2 pistons
Clamp Fixing Screw:
Tool size: 4mm
Anti-loosening method: Screw fixed pin
Clamping installation "clamping shaft
Color: Black
