Shimano 105 Di2 R7100 FD R7150 Front Derailleur Braze on 2x12 Speed RD-R7150 Rear Derailleur 1 PCS For Road Bike

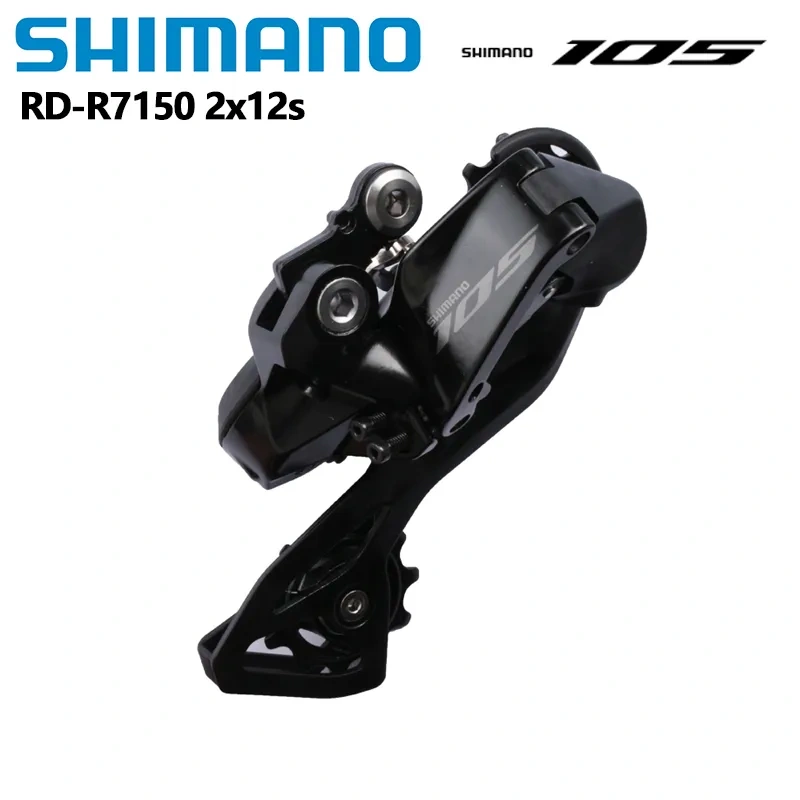

MODEL NO: RD-R7150
SERIES: SHIMANO 105 R7100 Di2 Series
Color: Series color
Remarks: w/o Bracket spec. available
Rear speeds: 12
Top-normal spring type|SHIMANO SHADOW RD: ✔
Mount|Direct attachment (Conventional): ✔
Mount|Direct Mount :✔
Max. front difference: 16T
Total capacity: 41T
Low sprocket|Max.: 36T
Low sprocket|Min.: 34T
Top sprocket|Max.: 11T
Top sprocket|Min.: 11T
Fluoric coated link bushings: 4
Pulley|Teeth: 11
Pulley|Sunken type pulley bolt: ✔
B-axle|Hollow axle: ✔
B-axle 2|Hollow axle: ✔
Di2 connectivity wired|Di2 shifting: ✔
Di2 connectivity wireless|Di2 shifting: ✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Adjust mode information: ✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Di2 battery level: ✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Gear position: ✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|SHIMANO STEPS data items (*3) :✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE RIDE: ✔
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE PROJECT: ✔
Di2 connectivity wireless|ANT private (*2)|Adjust mode information: ✔
Di2 connectivity wireless|ANT private (*2)|Di2 battery level: ✔
Di2 connectivity wireless|ANT private (*2)|Gear position: ✔
Di2 connectivity wireless|ANT private (*2)|SHIMANO STEPS data items (*3): ✔
Firmware update by E-TUBE PROJECT: ✔
SD50 port (pcs): 0
SD300 port (pcs): 1
SD50 connector (pcs): 0
SD300 connector (pcs): 0
LED for system status: ✔
Charging port (pcs): ✔
Charging cable: EW-EC300

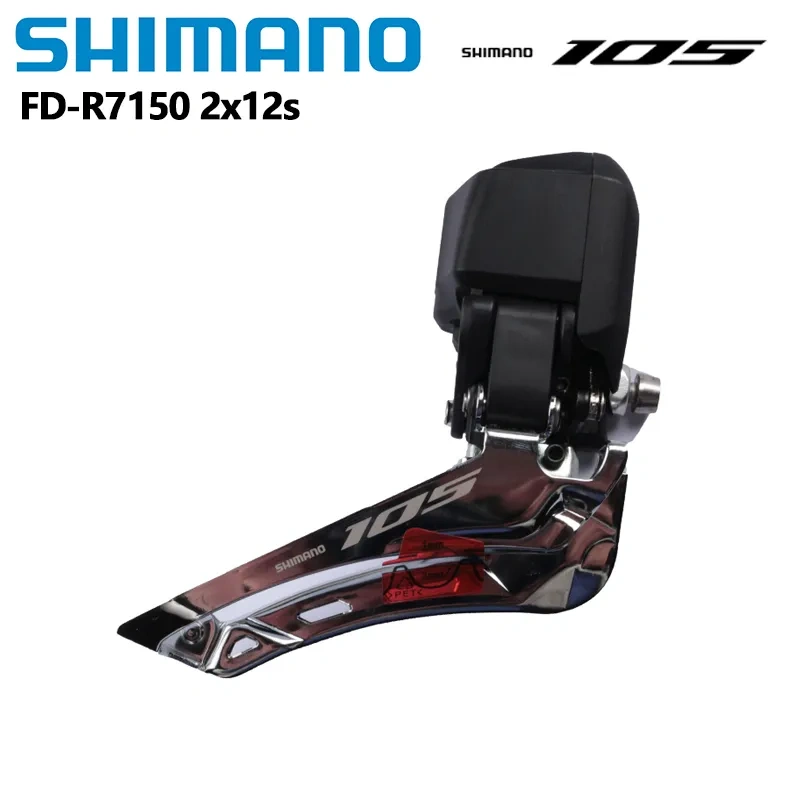

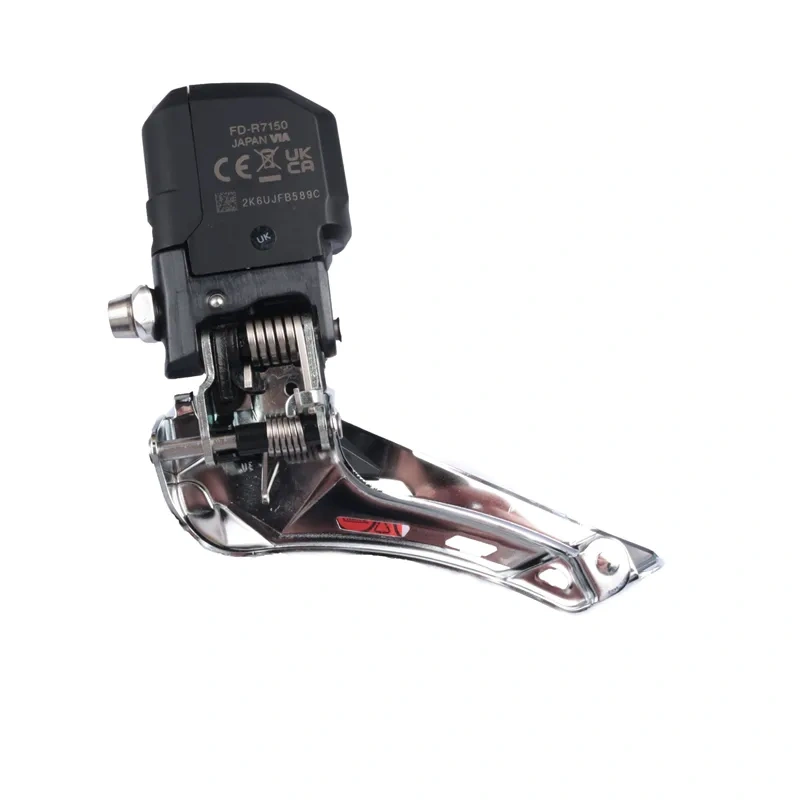

MODEL NO: FD-R7150
SERIES: SHIMANO 105 R7100 Di2 Series
Color: Series color
Front speeds: 2
Rear speeds: 12
Compatible chain: HG 12-speed
Action|Down Swing: ✔
Mount|Brazed-On: ✔
Chain line (mm): 44.5
Chain stay angle (deg.): 61 - 66
Top gear teeth: 50-52T
Total capacity: 16T
Link bushings: 2
Firmware update by E-TUBE PROJECT: ✔
SD300 port (pcs): 1
