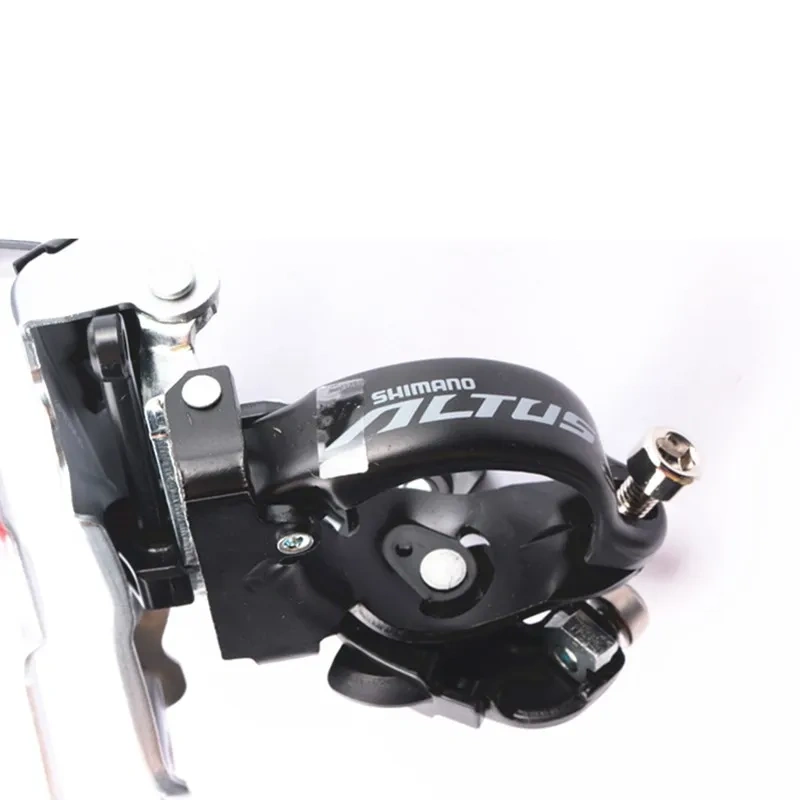

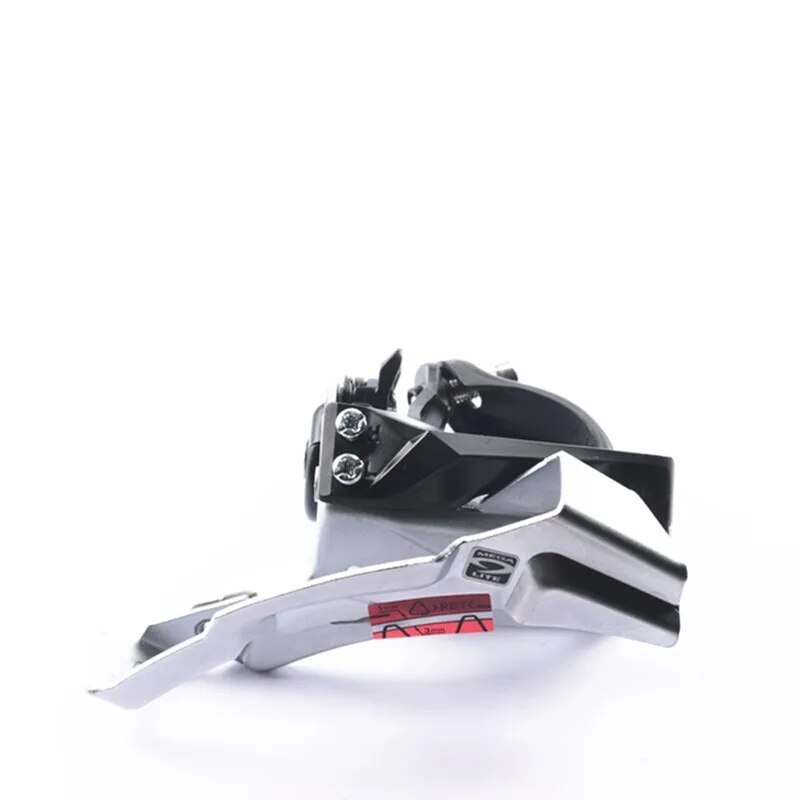

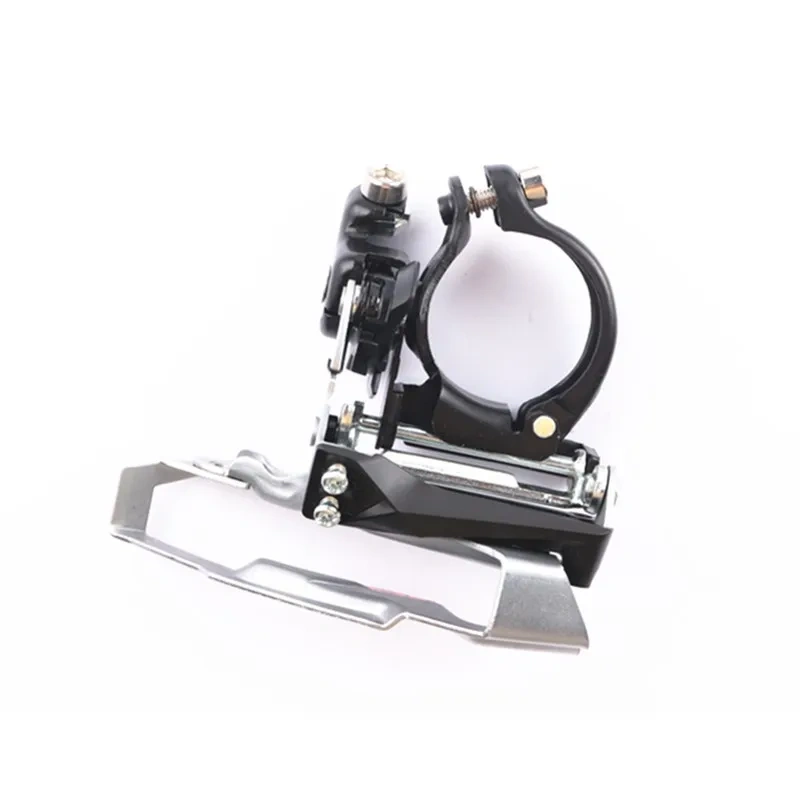

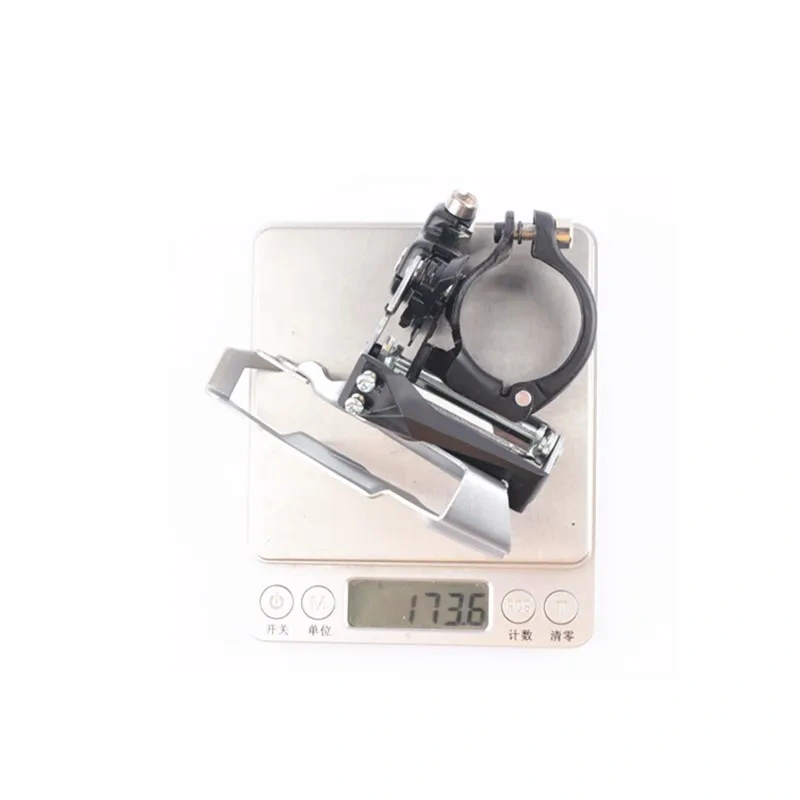

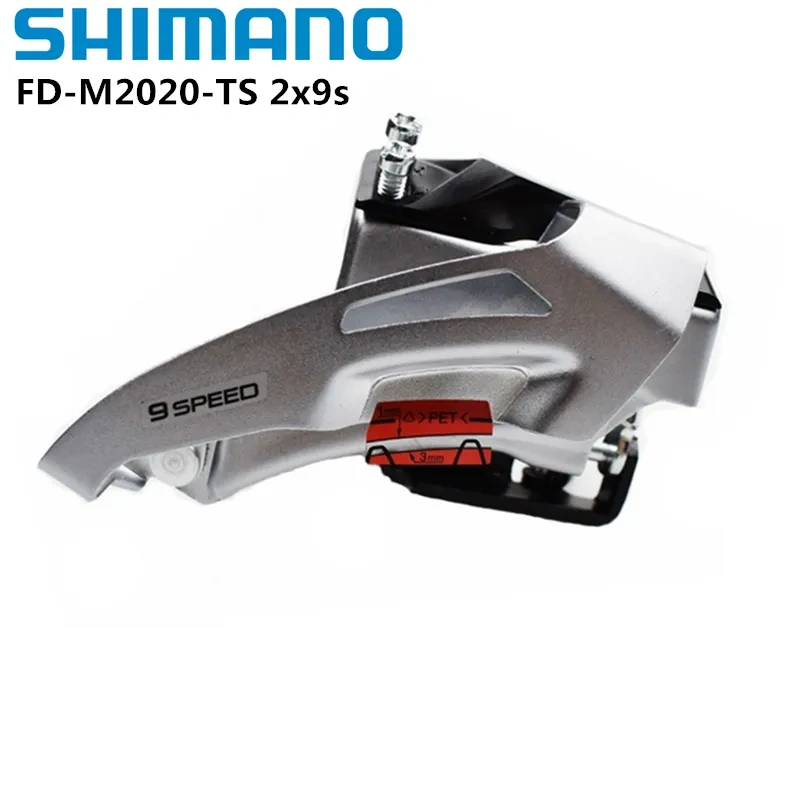

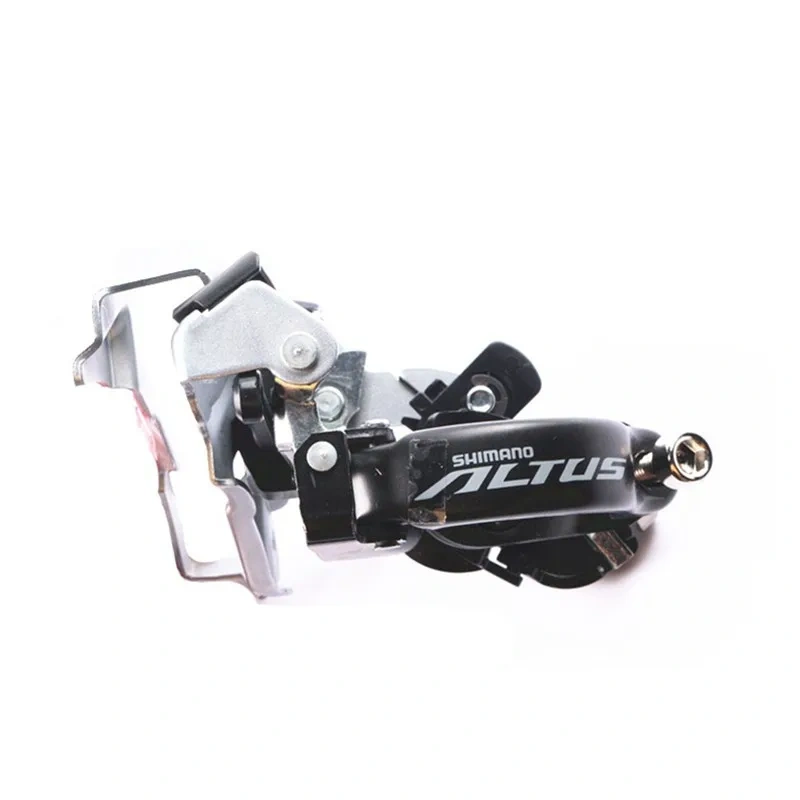

Shimano ALTUS M2000 Series FD-M2020-TS Front Derailleur Clamp Ring Installation 2x9s Compatible With HG 9s Chain For MTB Bike
Model: FD-M2020-TS
Series: ALTUS M2000 series
Color: series color
Remarks: * Boost specifications
Operation_TOP SWING: ✔
Angle clamp design: ✔
Angle stroke adjustment screw: ✔
Wiring type_Double pull: ✔
Chain center line (mm): 48.8/51.8*
Chainstay angle (degrees): 64-69
Compatible chain: HG 9 speed
Base_clamp ring (mm)_28.6: X (including adapter S)
Base_clamp ring (mm)_31.8: X (including adapter M)
Base_clamp ring (mm)_34.9: ✔
Stage speed_front: 2
Stage speed_after: 9
Maximum number of sprocket teeth: 36T
Total value of gear changing range: 14T
Front gear: 2
Rear gear: 9
