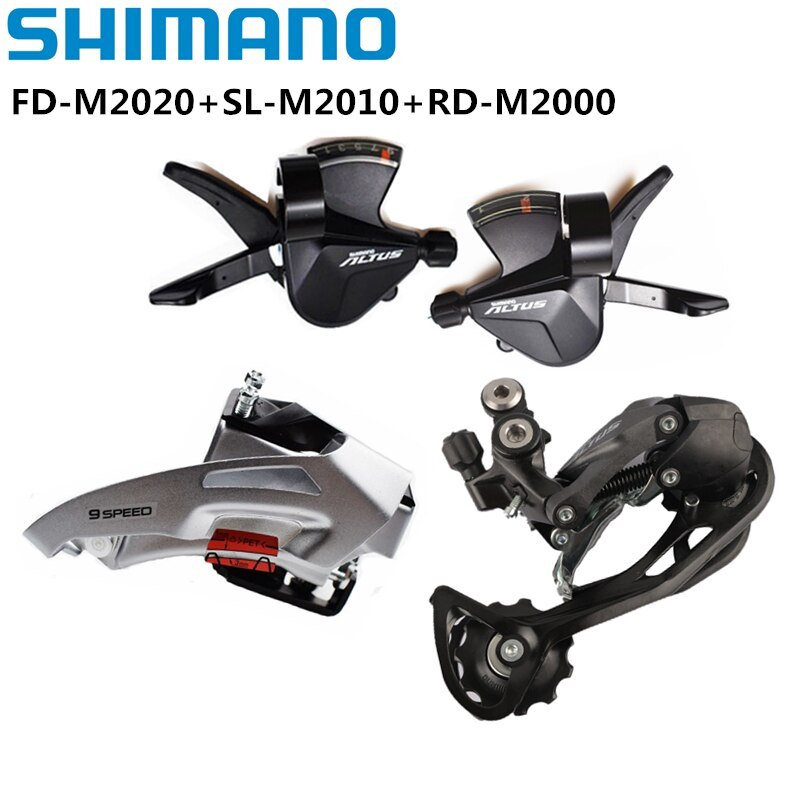

Shimano ALTUS M2000 9 speed MTB Group Mountain Bike Rear Derailleur Long Cage SGS shifter levers + Front Rear + Derailleur
Package Include:
1 pcs FD-M2020
1 pcs a pair SL-M2010 2x9s
1pcs RD-M2000-SGS
PRODUCT SPECIFICATIONS:

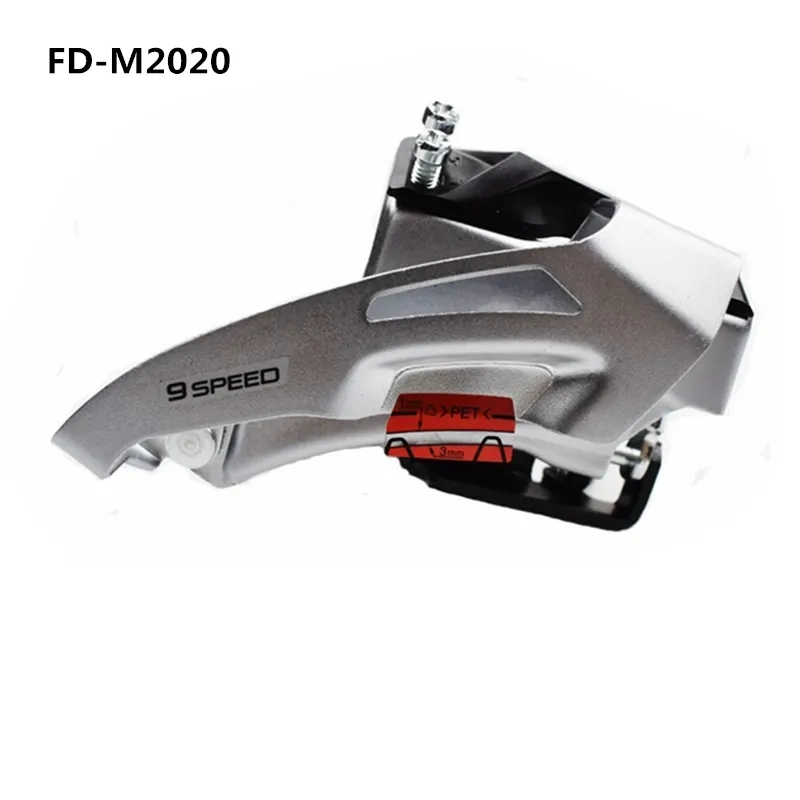

MODEL NO:FD-M2020-TS
SERIES:ALTUS M2000 Series
Color:Series color
Remarks:* Boost Spec
Action_TOP SWING:✔
Angled clamp band design:✔
Angled stroke adjust bolt:✔
Cable route type_Dual-Pull:✔
Chain line (mm):48.8/51.8*
Chain stay angle (deg.):64-69
Compatible chain:HG 9-speed
Mount_Clamp Band (mm)_28.6:X (w/ S size adapter)
Mount_Clamp Band (mm)_31.8:X (w/ M size adapter)
Mount_Clamp Band (mm)_34.9:✔
Speeds_Front:2
Speeds_Rear:9
Top gear teeth:36T
Total capacity:14T
Front speeds:2
Rear speeds:9

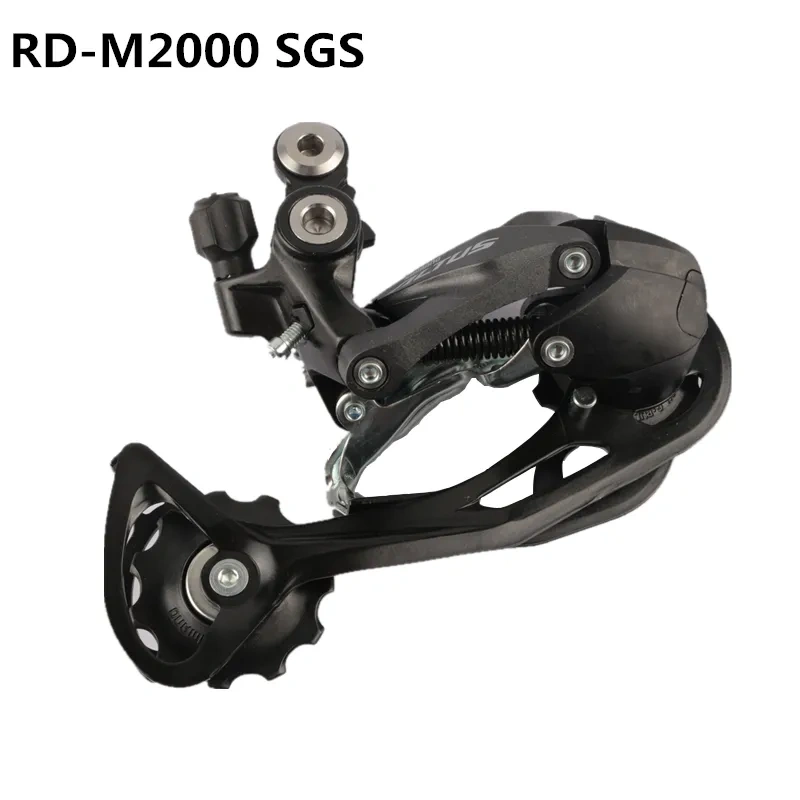

Model: RD-M2000
Series: ALTUS M2000 series
Color: series color
Compatible chain: HG 9 speed
Direct installation (traditional): ✔
Low sprocket_Maximum teeth: 36T
Low sprocket _ smallest tooth: 32T
Maximum and minimum sprocket tooth number difference: 22T
Guide wheel_Recessed guide wheel screw: ✔
Guide wheel_tooth number combination: 11T
Guide plate: SGS
Rear gear: 9
High standard spring type_SHADOW RD: ✔
High sprocket_Maximum teeth: 12T
High sprocket _ smallest tooth: 11T
Total value of gear changing range: 45T
PRODUCT SPECIFICATIONS:

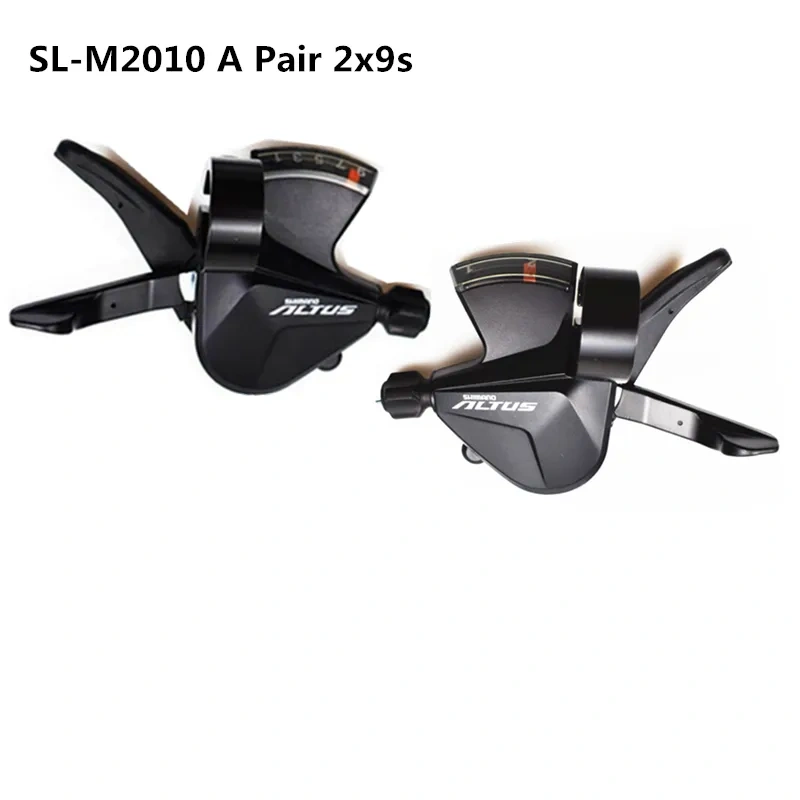

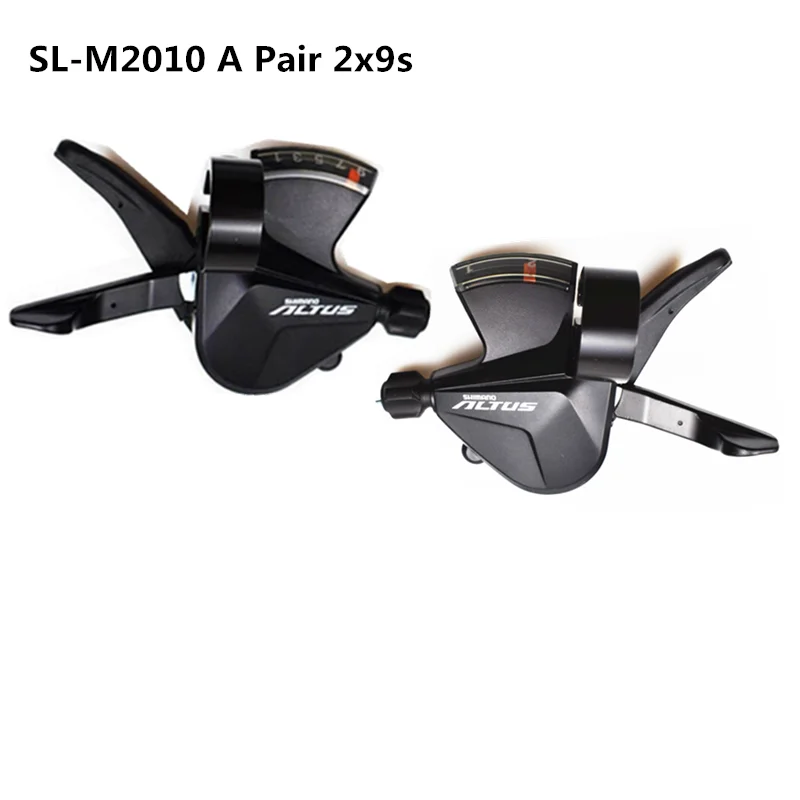

MODEL NO:SL-M2010-R 9s
SERIES:SHIMANO ALTUS M2000 Series
Color:Series color
Clamp band:✔
Mount type_Clamp band:✔
Compatible rear derailleur type :MTB 9-speed
Max. multiple shifts (Main lever/rear):3
OPTICAL GEAR DISPLAY_with:✔
Rear speeds:9
Recommended shifting lever outer casing:OT-SP41
Shifting lever cable adjust:✔
Shifter type:RAPIDFIRE PLUS
Compatible with I-SPEC EV Brake Lever:✔
Model: SL-M2010-L 2s
Series: ALTUS M2000 series
Color: series color
Clamping ring: ✔
Support type_clamp ring: ✔
Front gear: 2
OPTICAL GEAR DISPLAY_With: ✔
Recommended outer casing of the shift lever: OT-SP41
Shift lever cable adjustment: ✔
Shift lever type: RAPIDFIRE PLUS
